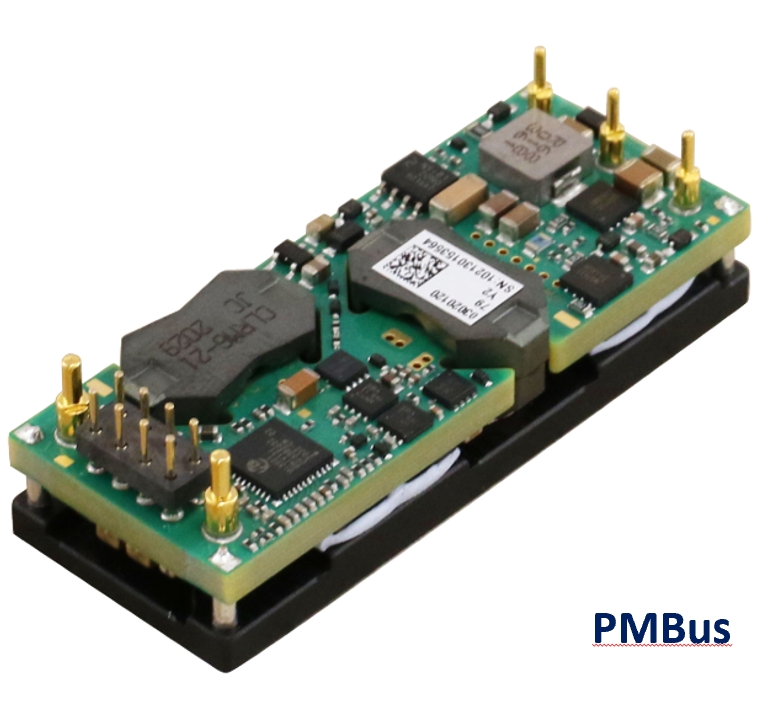

GDE25S12B-PE Product Description

The GDE25S12B-PE is a new-generation isolated DC-DC converter that uses the industry standard eighth-brick structure and features high efficiency, high power density, low output ripple, and low noise. Input voltage range: 3675 V; rated output voltage: 12 V; maximum output current: 25 A.

Features
 ● Efficiency: 94.2% (Vin = 48 V, TA = 25°C, 100% load)

 ● H x W x D: 13.2 mm x 58.4 mm x 22.9 mm (0.52 in. x 2.30 in. x 0.90 in.)

 ● Weight: ≤ 55 g

 ● Input undervoltage protection, output overcurrent protection (hiccup mode), output short-circuit protection (hiccup mode), output overvoltage protection (hiccup mode), and output overtemperature protection (self recovery)

 ● Supports remote startup and shutdown and PMBus communication.

 ● CE/UL certified

 ● Complies with UL 62368-1 and C22.2 No. 62368-1.

 ● Complies with RoHS6.

 Application

 ● Server

 ● Telecom and datacom application

 ● Industrial equipment

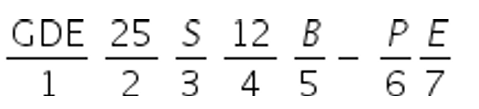

Naming Convention

 1 — 48 V input, high performance, digital control, eighth brick

 2 — Output current: 25 A

 3 — Single output

 4 — Output voltage: 12 V

 5 — With a baseplate

 6 — PMBus

 7 — Version number
